Mechanical Single Line (Hook on) Grabs

16566 - 67 -68 Single Line (Hook on) Clamshell Grabs with Radio Remote control ( Currently 3 pc. Under Construction)

16566 - 67 -68 Single Line (Hook on) Clamshell Grabs with Radio Remote control ( Currently 3 pc. Under Construction)

  • Type : MOC-RC12000
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  • For charging and discharging of rolling bulk materials
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Capacity : 12m3 (capacity reducible down to 10m3, 8m3 & 6m3)
  • Empty Weight : approx. 10.200 kg

Main Dimensions:

  • Spread open : Approx. 3780mm
  • Spread closed :  Approx. 3100mm
  • Height open : Approx. 4600mm
  • Height closed : Approx. 4110mm
  • Width : Approx. 3460mm
10070A 1 Pc. Single Line (Hook on) Clamshell Grab with Radio Remote Control

10070A 1 Pc. Single Line (Hook on) Clamshell Grab with Radio Remote Control

  • Type : MOC-RC5500
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  • For charging and discharging of rolling bulk materials
  • Shell execution : executed with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity
  • Capacity : 5.5m3
  • Empty Weight : approx. 7850kg

Main Dimensions:

  • Spread open : approx. 3860mm
  • Spread closed :  approx.. 2490mm
  • Height open : approx. 4060mm
  • Height closed : approx. 3890mm
  • Width : approx. 2240mm

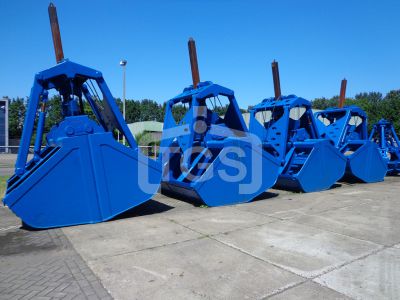

12217,18 &12541 - Single Line (Hook on) Clamshell Grabs Touch Down (Automatic) Operated  (3 pc. om stock)

12217,18 &12541 - Single Line (Hook on) Clamshell Grabs Touch Down (Automatic) Operated (3 pc. om stock)

  • Execution : Single Line Touch Down Operated (Automatic)
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Piled density : For charging and discharging of light rolling bulk materials with a density up to max. 1.0 ton/m3
  • Capacity : 12m3 (capacity reducible by takeng out the kick plates.
  • Empty Weight : approx. 6.600 kg

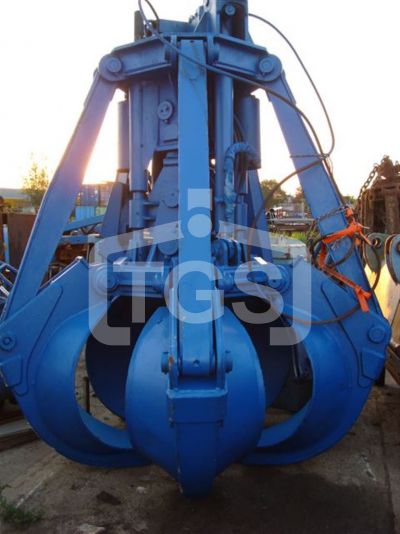

10123 - 1 pc. Single Line (Hook on) Clamshell Grab - Hand Tripped (Manually operated)

10123 - 1 pc. Single Line (Hook on) Clamshell Grab - Hand Tripped (Manually operated)

  • Execution : Heavy Duty, Single Line (Manually Operated)
  • Shell execution : 6 half closed shells
  • Capacity : 2.2m3
  • Empty Weight : approx. 7.300 kg

Main Dimensions:

  • Spread open : Approx. 3550mm
  • Spread closed :  Approx. 2600mm
  • Height open : Approx. 3750mm
  • Height closed : Approx. 3000mm
  • Withdrawal length to operate 8400mm

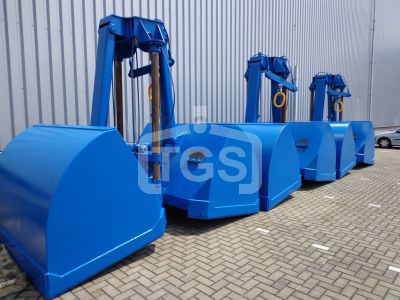

Mechanical Single Line (Hook on) Clamshell Grabs, Touch Down (Automatic) Operated
Sold

Mechanical Single Line (Hook on) Clamshell Grabs, Touch Down (Automatic) Operated Sold

  • Type : MOC-TD4500
  • Execution : Single Line Touch Down Operated (Automatic)
  • For charging and discharging of rolling bulk materials with a density up to max 1.6 ton/m3
  • Capacity : 4500 ltr (4.5 m3
  • Empty weight : Approx. 3.400 kg (3.4 ton)

Main Dimensions:

  • Height open : approx. 3050mm
  • Height closed : approx. 2770mm
  • Closing rope widthdraw to close 4100mm
  • Spread open : approx. 3040mm
  • Spread closed : approx. 2510mm
  • Width : approx. 2200mm
13995 Single Line (Hook on) Clamshell Grabs with Radio Remote control (1pc. On Stock!)
Sold

13995 Single Line (Hook on) Clamshell Grabs with Radio Remote control (1pc. On Stock!) Sold

  • Type : MOC-RC-UW8000
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  • Suitable for light dredging purposes of sand
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Capacity : 8m3 (capacity reducible down to 5.5m3)
  • Empty Weight : approx. 7.400 kg

Main Dimensions:

  • Spread open : Approx. 3800mm
  • Spread closed :  Approx. 2730mm
  • Height open : Approx. 3840mm
  • Height closed : Approx. 3730mm
  • Width : Approx. 2500mm
14669,70,71,72 - 4 Pc. Single Line (Hook on) Clamshell Grabs with Radio Remote control
Sold

14669,70,71,72 - 4 Pc. Single Line (Hook on) Clamshell Grabs with Radio Remote control Sold

  • Type : MOC-RC8000
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  • For charging and discharging of rolling bulk materials
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Capacity : 8m3 (capacity reducible down to 6.5m3, 5.75m3 & 5m3)
  • Empty Weight : approx.6800 kg

Main Dimensions:

  • Spread open : Approx. 3800mm
  • Spread closed :  Approx. 2810mm
  • Height open : Approx. 4320mm
  • Height closed : Approx. 3990mm
  • Width : Approx. 2550mm
14316 1 Pc. Single Line (Hook on) Clamshell Grab with Radio Remote control
Sold

14316 1 Pc. Single Line (Hook on) Clamshell Grab with Radio Remote control Sold

  • Type : MOC-RC12000
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  • For charging and discharging of rolling bulk materials
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Capacity : 12m3 (capacity reducible down to 10m3, 8m3 & 6m3)
  • Empty Weight : approx. 10.200 kg

Main Dimensions:

  • Spread open : Approx. 3780mm
  • Spread closed :  Approx. 3100mm
  • Height open : Approx. 4600mm
  • Height closed : Approx. 4110mm
  • Width : Approx. 3460mm
14805 - 14806 2 pc. Single Line (Hook on) Clamshell Grabs with Radio Remote control
Sold

14805 - 14806 2 pc. Single Line (Hook on) Clamshell Grabs with Radio Remote control Sold

  • Type : MOC-RC12000
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Knives : Bottom knife and side knives executed with rubber sealing for charging and discharging of fine bulk materials
  • Capacity : 12m3 (capacity reducible down to 10m3, 8m3 & 6m3)
  • Empty Weight : approx. 10.200 kg

Main Dimensions:

  • Spread open : Approx. 3780mm
  • Spread closed :  Approx. 3100mm
  • Height open : Approx. 4600mm
  • Height closed : Approx. 4110mm
  • Width : Approx. 3460mm

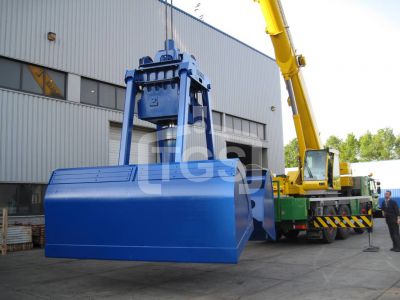

12037 - 1 pc. Single Line (Hook on) Clamshell Grabs with Radio Remote control
Sold

12037 - 1 pc. Single Line (Hook on) Clamshell Grabs with Radio Remote control Sold

  • Type : MOC-RC12000B
  • Execution : Single Line with Radio Remote for controlled opening in mid air
  •  For charging and discharging of rolling bulk materials
  • Shell execution : Fitted with kick plates to reduce capacity in case of heavier cargoes or cranes with less lifting capacity.
  • Capacity : 12m3 (capacity reducible down to 9.5m3, 8m3 & 6.5m3)
  • Empty Weight : approx. 10.500 kg

Main Dimensions:

  • Spread open : Approx. 3849mm
  • Spread closed :  Approx. 3062mm
  • Height open : Approx. 4550mm
  • Height closed : Approx. 4145mm
  • Width : Approx. 3730mm
