Mechanical Two Rope Grabs

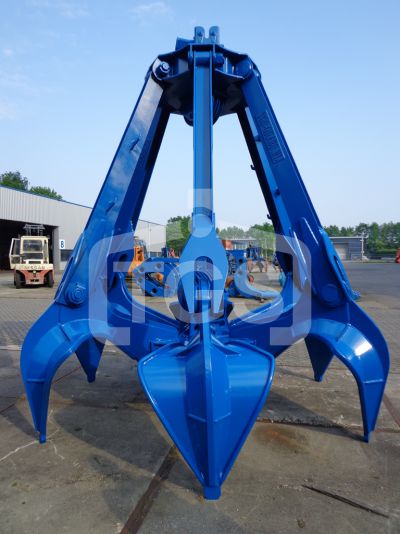

17816 1pc. Heavy Duty Two Rope Orange Peel Grab

17816 1pc. Heavy Duty Two Rope Orange Peel Grab



  • Type : MTOPGH-KRO-1000
  • Execution : Heavy duty, 2 rope operated for handling rocks or heavy scrap
  • Shell execution : 6 shells
  • Capacity : 1,0m3
  • Empty Weight : approx.5.600 kg (5,6 ton)

Main Dimensions:

  • Spread open : approx. 2900mm
  • Spread closed : approx. 2360mm
  • Height open : approx. 3460mm
  • Height closed : approx. 2950mm
17865 1 pc. Heavy Duty Mechanical Two Rope Roundnose Grab (Currently under construction)

17865 1 pc. Heavy Duty Mechanical Two Rope Roundnose Grab (Currently under construction)

  • Type : MTRGN5000
  • Execution : 2-Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable ESCO Teeth
  • Capacity : 5000 ltr  (5m3)
  • Empty Weight : approx. 9.000 kg  (9.0 ton)
  • Extra option: The Grab can be executed with counter weights (ballast). Total weight including counter weight: approx. 11 ton

Main Dimensions:

  • Spread open : approx. 4500mm
  • Spread closed :  approx. 3550mm
  • Height open : approx. 5563mm
  • Height closed : approx. 4420mm
  • Width : approx. 1870mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

17891 1pc. New Heavy Duty Mechanical Two Rope Roundnose Grab (Currently Under Construction)

17891 1pc. New Heavy Duty Mechanical Two Rope Roundnose Grab (Currently Under Construction)

  • Type grab : MTRGHS5000-65SV2
  • Execution  : 2-Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable 65SV2 ESCO Teeth
  • Capacity : 5000 Ltr. (5.0m3)
  • Empty weight : approx. 15.600 kg (15 ton)

Main Dimensions:

  • Spread open : approx. 5400mm
  • Spread closed :  approx. 3610mm
  • Height open : approx. 6610mm
  • Width : approx. 1870mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

17925 1pc. Heavy Duty  Two Rope Orange Peel Grab (Currently under construction)

17925 1pc. Heavy Duty Two Rope Orange Peel Grab (Currently under construction)

  • Type : MTOPGHH3500
  • Execution : Heavy duty, 2 rope operated for handling rocks
  • Shell execution : 6 half closed shells
  • Capacity : 3.5m3
  • Empty Weight : 12.000 kg (12 ton)

Main Dimensions:

  • Spread open : approx. 4170mm
  • Spread closed : approx. 3320mm
  • Height open : approx. 4590mm
  • Height closed : approx. 4080mm
17890 Heavy Duty Mechanical Two Rope Roundnose Grab (Currently under construction)

17890 Heavy Duty Mechanical Two Rope Roundnose Grab (Currently under construction)

  • Type : MTRGH5000
  • Execution  : 2-Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable ESCO Teeth
  • Capacity : 5000 ltr  (5m3)
  • Empty Weight  : approx. 13.000 kg  (13.0 ton)
  • Extra option: The Grab can be executed with counter weights (ballast). Total weight including counter weighht: approx. 15 ton

Main Dimensions:

  • Spread open : approx. 5230mm
  • Spread gesloten :  approx. 3550mm
  • Height open : approx. 6040mm
  • Height closed : approx. 5130mm
  • Width : approx. 1870mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

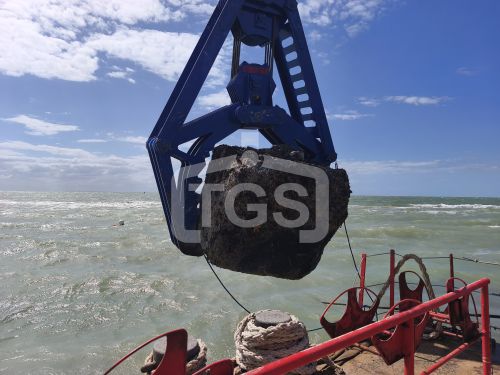

17815 Mechanical Two Rope Block Clamp

17815 Mechanical Two Rope Block Clamp

  • Type : MTBLOCK-2S-13-24T
  • Execution : 2 rope operated
  • Capacity : for handling Concrete Blocks from 13 up to max 24 MT (1,80 M up to max 2,32 m)
  • Empty Weight : approx. 5600 kg (5.6 ton)
17695 1pc. NEW Heavy Duty Two Rope Mechanical Digging/ Dredging Clamshell Grab

17695 1pc. NEW Heavy Duty Two Rope Mechanical Digging/ Dredging Clamshell Grab

  • Type : MTDC-KRO-15000
  • Execution: Extra Heavy Duty, Two Rope,
  • Suitable for heavy Duty digging/ dredging purposes
  • Shell Execution : Executed with flat knives and dewatering sleeves
  • Capacity : 15,0m³
  • Empty Weight : appr. 22.500 kg

Main Dimensions:

  • Spread open : approx. 6360mm
  • Spread Closed : approx. 4480mm
  • Height open : approx. 6840mm
  • Height closed : approx. 6200 mm
  • Width : approx. 2950-3290mm
17942 - 17970 1 pc. Mechanical Two Rope Tube/ Pile Grab

17942 - 17970 1 pc. Mechanical Two Rope Tube/ Pile Grab



  • Type : MTBG750
  • Shell execution : ø750mm
  • Height open: aprrox 2550mm
  • Empty Weight : Approx. 2200 kg
17941 1 pc. Mechanical Two Rope Tube/ Pile Grab

17941 1 pc. Mechanical Two Rope Tube/ Pile Grab



  • Type : MTBG1395
  • Shell execution : ø1395mm
  • Height open: approx 4100mm
  • Empty Weight : Approx. 4800 kg
10935 1 pc. Mechanical Two Rope Tube/ Pile Grab

10935 1 pc. Mechanical Two Rope Tube/ Pile Grab

  • Type : MBG600
  • Shell execution : ø600mm
  • Empty Weight : Approx. 1800 kg
13521 1 pc. Mechanical Two Rope Tube/ Pile Grab

13521 1 pc. Mechanical Two Rope Tube/ Pile Grab

  • Type : MBG600
  • Shell execution : ø550mm
  • Empty Weight : Approx. 1100 kg
16073 - 1 Pc. Heavy Duty Mechanical Two Rope Orange Peel Grab
Sold

16073 - 1 Pc. Heavy Duty Mechanical Two Rope Orange Peel Grab Sold

  • Type : MTOPGH9000-U55HHB
  • Execution : 2 rope operated for handling medium sized & Big rocks
  • Shell execution : 6 bottom side almost closed shells with interchangeable Tooth Points
  • Capacity : 9m3
  • Empty Weight : 27.500 kg (27.5 ton)

Main Dimensions:

  • Spread open : approx. 5360-5670mm
  • Spread closed :  approx. 4670mm
  • Height open : approx. 6880mm
  • Height closed : approx. 5970mm
17354 1 Pc.Mechanical Two Rope Operated 3 Tine Orange Peel Rock Grab (Currently under construction)
Sold

17354 1 Pc.Mechanical Two Rope Operated 3 Tine Orange Peel Rock Grab (Currently under construction) Sold

  • Type : MTOPGH-3S-8000
  • Execution : 2 rope operated for handling single big rocks (Can also operate 4 rope)
  • Shell execution : 3 open shells
  • Capacity : 50 MT
  • Empty Weight :  approx. 21 MT  (21 ton)

Main Dimensions:

  • Spread open : approx. 5590-6270mm
  • Height open : approx. 6670-6980mm
  • Height closed : approx. 5540-5750mm
17539 1pc. NEW Heavy Duty Two Rope Mechanical Digging/ Dredging Clamshell Grab
Sold

17539 1pc. NEW Heavy Duty Two Rope Mechanical Digging/ Dredging Clamshell Grab Sold

  • Type : MTDCHH-3000
  • Execution: Extra Heavy Duty, Two Rope,
  • Suitable for heavy Duty digging/ dredging purposes mixed with small rocks
  • Shell Execution : Integrated teeth Hardox 450
  • Capacity : 3,0m³
  • Empty Weight : appr. 4510 kg

Main Dimensions:

  • Spread open : approx. 3390-3580mm
  • Spread Closed : approx. 2630mm
  • Height open : approx. 3860mm
  • Height closed : approx. 3250 mm
  • Width : approx. 1650mm
16072 Heavy Duty Mechanical Two Rope Roundnose Grab
Sold

16072 Heavy Duty Mechanical Two Rope Roundnose Grab Sold

  • Type : MTRGHS9000-U55HHB
  • Execution  : 2-Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable ESCO Teeth
  • Capacity : 9000 ltr  (9m3)
  • Empty Weight  : approx. 27.500 kg  (27.5ton)

Main Dimensions:

  • Spread open : approx. 5840mm
  • Spread gesloten :  approx. 4190mm
  • Height open : approx. 7463mm
  • Height closed : approx. 6448mm
  • Width : approx. 2330mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

16240 - 1 Pc. Mechanical Two Rope Orange Peel Grab
Sold

16240 - 1 Pc. Mechanical Two Rope Orange Peel Grab Sold

  • Type : MTOPGN2000
  • Execution : 2 rope operated for handling small and medium sized rocks
  • Shell execution : 6 bottom side almost closed shells with integrated Hardox 450 teeth points
  • Capacity : 2m3
  • Empty Weight : 5500 kg (5.5 ton)

Main Dimensions:

  • Spread open : approx. 3671mm
  • Spread closed :  approx. 2913mm
  • Height open : approx. 3868mm
  • Height closed : approx. 3230mm
16240 - 1 Pc. Mechanical Two Rope Orange Peel Grab
Sold

16240 - 1 Pc. Mechanical Two Rope Orange Peel Grab Sold

  • Type : MTOPGN2000
  • Execution : 2 rope operated for handling small and medium sized rocks
  • Shell execution : 6 bottom side almost closed shells with integrated Hardox 450 teeth points
  • Capacity : 2m3
  • Empty Weight : 5500 kg (5.5 ton)

Main Dimensions:

  • Spread open : approx. 3671mm
  • Spread closed :  approx. 2913mm
  • Height open : approx. 3868mm
  • Height closed : approx. 3230mm
15441 1pc.  Heavy Duty  Two Rope Orange Peel Grab (Currently beïng overhauled)
Sold

15441 1pc. Heavy Duty Two Rope Orange Peel Grab (Currently beïng overhauled) Sold

  • Type : MTOPGHH5000
  • Execution : Heavy duty, 2 rope operated for handling rocks
  • Shell execution : 6 half closed shells
  • Capacity : 5m3
  • Empty Weight : approx. 25.000 kg (25 ton)

Main Dimensions:

  • Spread open : approx. 4700mm
  • Height open : approx. 5300mm
14997 1pc.  Mechanical Two Rope Clamshell Grab/ Dredging Grab
Sold

14997 1pc. Mechanical Two Rope Clamshell Grab/ Dredging Grab Sold

  • Type : MTDC20-5500
  • Execution: Two Rope,
  • Suitable charging and discharging of sand and gravel / or light dredging purposes
  • Shell Execution : Executed with flat knife Hardox 450
  • Capacity : 5,5m³
  • Empty Weight : appr. 6.400 kg

Main Dimensions:

  • Spread open : approx. 4220 mm
  • Spread closed : approx. 3120mm
  • Height open : approx. 4370mm
  • Height closed : approx. 3959 mm
  • Width : approx. 1700mm
15617 1 Pc. Heavy Duty Mechanical Two Rope Roundnose Grab
Sold

15617 1 Pc. Heavy Duty Mechanical Two Rope Roundnose Grab Sold

  • Type grab : MTRGH3500
  • Execution  : 2-Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable ESCO Teeth
  • Capacity : 3500 Ltr. (3.5m3) – Dome 30°
  • Empty weight : approx. 7.000 kg (7 ton)
  • Extra option: The Grab can be executed with 2x 0.5 Ton counter weights (ballast). Total weight including counter weighht: approx. 8 ton

Main Dimensions:

  • Spread open : approx. 3910mm
  • Spread closed :  approx. 2902mm
  • Height open : approx. 4520mm
  • Height closed : approx. 3811mm
  • Width : approx. 1620mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

13358 1 pc. Mechanical Two Rope Diaphragm Wall Grab
Sold

13358 1 pc. Mechanical Two Rope Diaphragm Wall Grab Sold

  • Type : MTDWG-800-1000-1200
  • Shell execution : Shell width: 800mm
  • Also shells available to 1000mm & 1200mm width
  • Executed with interchangeable teeth points
  • Empty Weight : with 800 mm shells: 15.4 ton

Main Dimensions with 800mm shells:

  • Spread open : approx. 3000mm
  • Spread closed : approx. 2720mm
  • Height open : approx. 9020mm
  • Height closed : approx. 10000mm

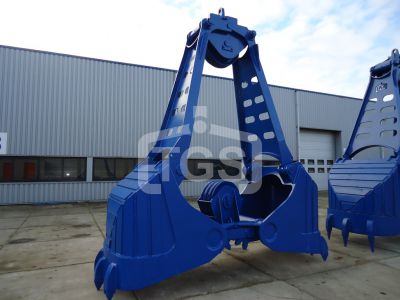

10941 Two Rope Mechanical Heavy Duty Roundnose Grab
Sold

10941 Two Rope Mechanical Heavy Duty Roundnose Grab Sold

  • Type grab : MTRGH3000
  • Execution : Two Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable ESCO Teeth
  • Capacity : 3000 Ltr. (3m3)
  • Empty weight : 5.200 kg

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

Main Dimensions:

  • Spread open : approx. 3932mm
  • Spread closed :  approx. 2905mm
  • Height open : approx. 4203mm
  • Height closed : approx. 3851mm
  • Width : approx. 1340mm
13102 1 Pc. Heavy Duty Mechanical Two Rope Roundnose Grab
Sold

13102 1 Pc. Heavy Duty Mechanical Two Rope Roundnose Grab Sold

  • Type grab : MTRGH3500
  • Execution  : 2-Rope, Heavy Duty
  • Shell Execution : Executed with interchangeable ESCO Teeth
  • Capacity : 3500 Ltr. (3.5m3) – Dome 30°
  • Empty weight : approx. 7.000 kg (7 ton)
  • Extra option: The Grab can be executed with counter weights (ballast). Total weight including counter weighht: approx. 9 ton

Main Dimensions:

  • Spread open : approx. 3910mm
  • Spread closed :  approx. 2902mm
  • Height open : approx. 4520mm
  • Height closed : approx. 3811mm
  • Width : approx. 1620mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

11169 1pc. Mechanical Two Rope Orange Peel Grab (3 Tine)
Sold

11169 1pc. Mechanical Two Rope Orange Peel Grab (3 Tine) Sold

  • Type : MTOPGH-3S-50T
  • Execution : Heavy duty, 2 rope operated for handling rocks
  • Shell execution : 3 open shells
  • Capacity : up to 50 ton
  • Empty Weight : approx. 12 ton
10804 - 1 Pc. Mechanical Two Rope Block Handling Grab
Sold

10804 - 1 Pc. Mechanical Two Rope Block Handling Grab Sold

  • Type : MTBC-2S-50T
  • Execution : Heavy Duty, 2 rope operated
  • Shell execution : 2 tines with integrated Hardox 450 teeth
  • Capacity : for handling Single Blocks up to 50 ton
  • Empty Weight : 10.700 kg (10.7 ton)

Main Dimensions:

  • Spread open : approx. 5010mm (outside teeth)
  • Spread closed :  approx. 3420mm
  • Height open : approx. 5530mm
  • Height closed: approx. 5210mm
15910 1 Pc. Mechanical Two Rope Rock Handling Grab
Sold

15910 1 Pc. Mechanical Two Rope Rock Handling Grab Sold

  • Type : MTSG-4S-10T
  • Execution : 2 rope operated
  • Shell execution : 4 tines with interchangeable ESCO teeth
  • Capacity : for handling Single Rocks up to 10 ton
  • Empty Weight : 4400 kg (4.4 ton)

Main Dimensions:

  • Spread open : approx. 2770-3560mm
  • Spread closed :  approx. 2690mm
  • Height open : approx. 3950-5170mm
  • Height closed : approx. 3560-4750mm
14694 1 Pc. Mechanical Two Rope Rock Handling Grab
Sold

14694 1 Pc. Mechanical Two Rope Rock Handling Grab Sold

  • Type : MTSG-4S-20T
  • Execution : Heavy Duty, 2 rope operated
  • Shell execution : 4 tines with integrated Hardox 450 teeth
  • Capacity : for handling Single Rocks up to 20 ton
  • Empty Weight : 7260 kg (7.26 ton)

Main Dimensions:

  • Spread open : approx. 3655-4364mm
  • Spread closed :  approx. 2960mm
  • Height open : approx. 4645mm
15912 1pc.  Heavy Duty  Two Rope Orange Peel Grab (Currently under construction)
Sold

15912 1pc. Heavy Duty Two Rope Orange Peel Grab (Currently under construction) Sold

  • Type : MTOPGHH3500
  • Execution : Heavy duty, 2 rope operated for handling rocks
  • Shell execution : 6 half closed shells
  • Capacity : 3.5m3
  • Empty Weight : 12.000 kg (12 ton)

Main Dimensions:

  • Spread open : approx. 3740-3960mm
  • Spread closed : approx. 3340mm
  • Height open : approx. 4505mm
  • Height closed : approx. 3990mm

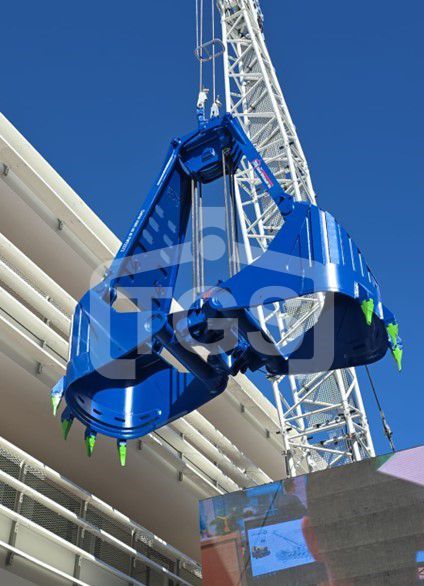

10563 1 pc. Heavy Duty Mechanical Two Rope Roundnose Grab
Sold

10563 1 pc. Heavy Duty Mechanical Two Rope Roundnose Grab Sold

  • Type : MTRGH3500
  • Execution  : 2-Rope, Heavy Duty
  • Shell Execution : Currently executed without teeth. Can be Executed with interchangeable ESCO Teeth
  • Capacity : 3500 ltr  (3.5m3)
  • Empty Weight  : approx. 7.000 kg  (7.0 ton)

Main Dimensions:

  • Spread open : approx. 3910mm
  • Spread gesloten :  approx. 2902mm
  • Height open : approx. 4520mm
  • Height closed : approx. 3861mm
  • Width : approx. 1620mm

Very suitable for heavy Digging and Dredging purposes mixed with big rocks

Home//On Stock//Mechanical Two Rope Grabs

Contact with TGS

The Grab Specialist B.V.
Draaibrugweg 1
1332 AA Almere
The Netherlands
T: +31 - (0) 36 532 88 22 E: info@tgs-grabs.nl
Menu
Contact
The Grab Specialist B.V.
Draaibrugweg 1
1332 AA Almere
The Netherlands
+31 - (0) 36 532 88 22 info@tgs-grabs.nl
